Pin cable coiler

For coiling flexible cables

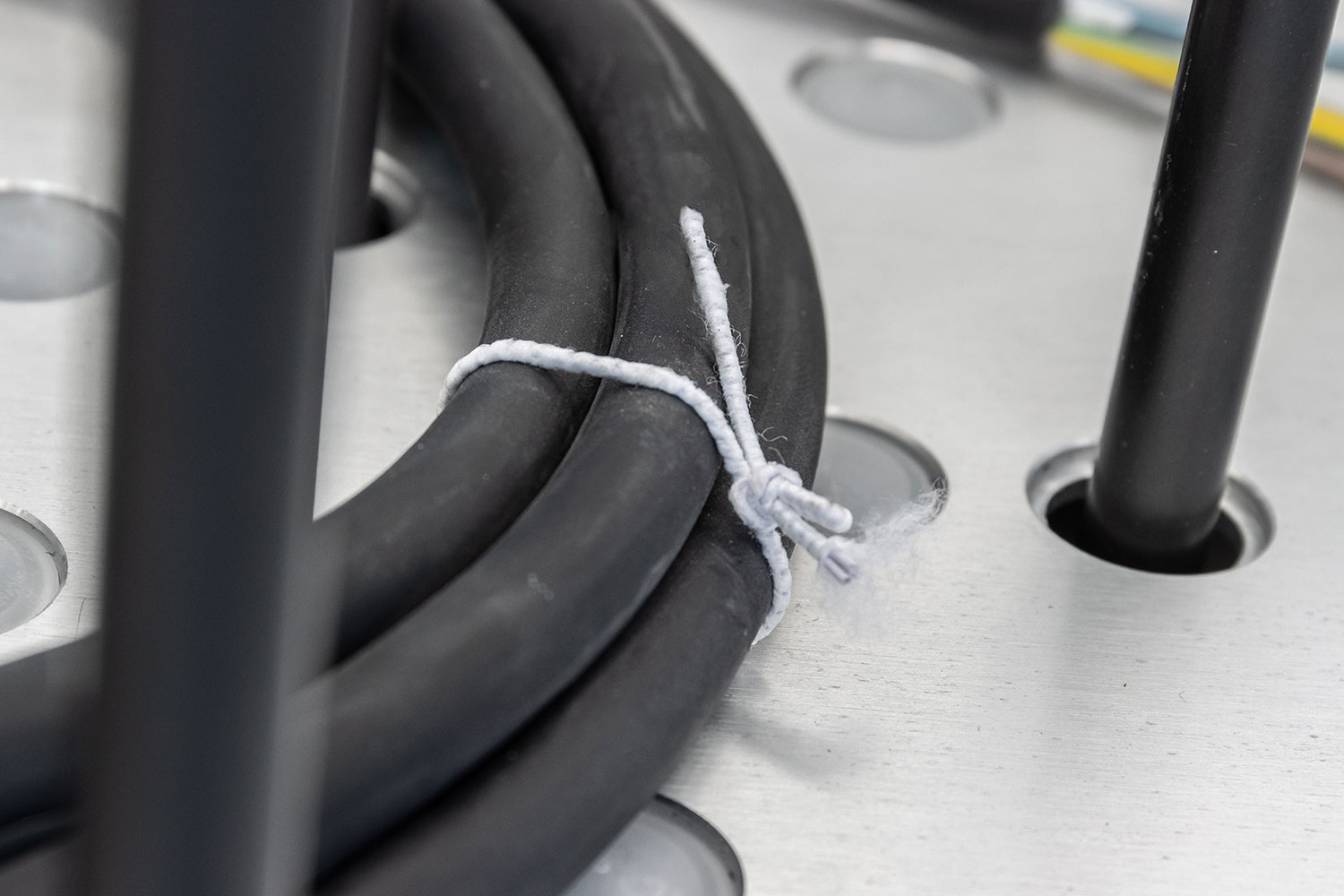

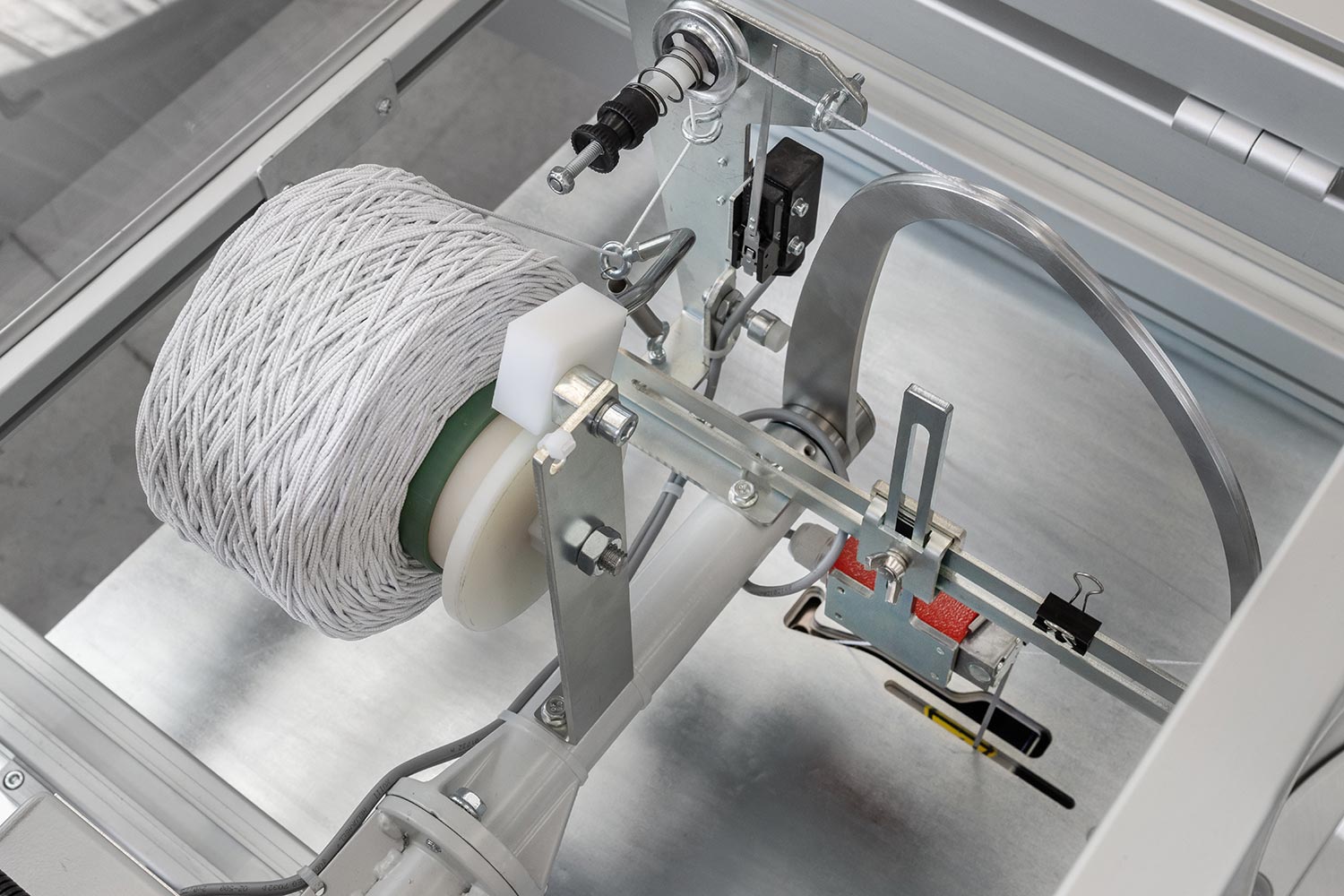

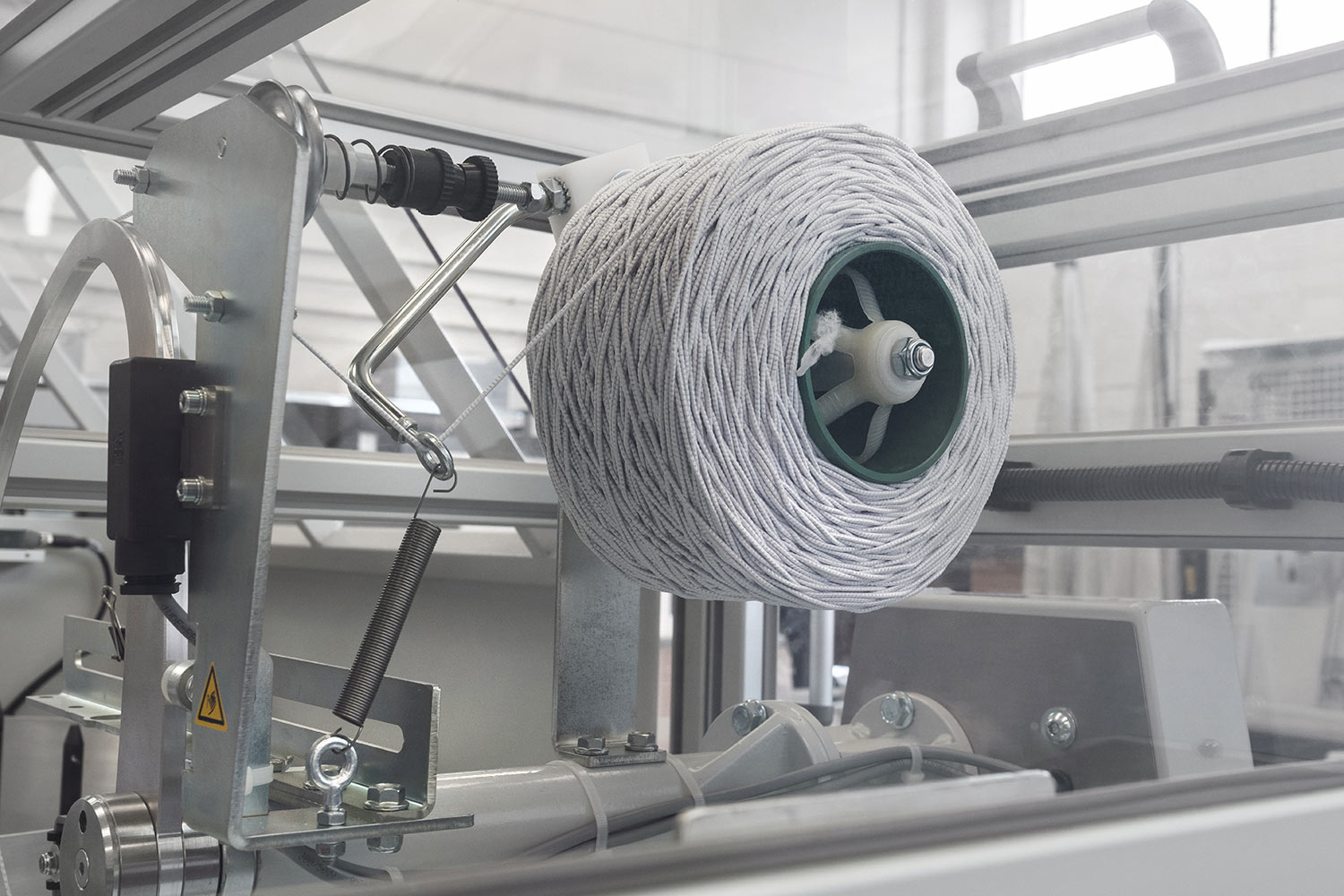

This machine is designed to coil automatically with elastic tie cables and flexibles tubes. The machine is easy to move as it is mounted on self-locking swivel wheels. It may be connected in line with SAMEC cutting-stripping machines or cutting machines, and with the aid of an encoder and an external sensor, it can also function with non-Samec machines.

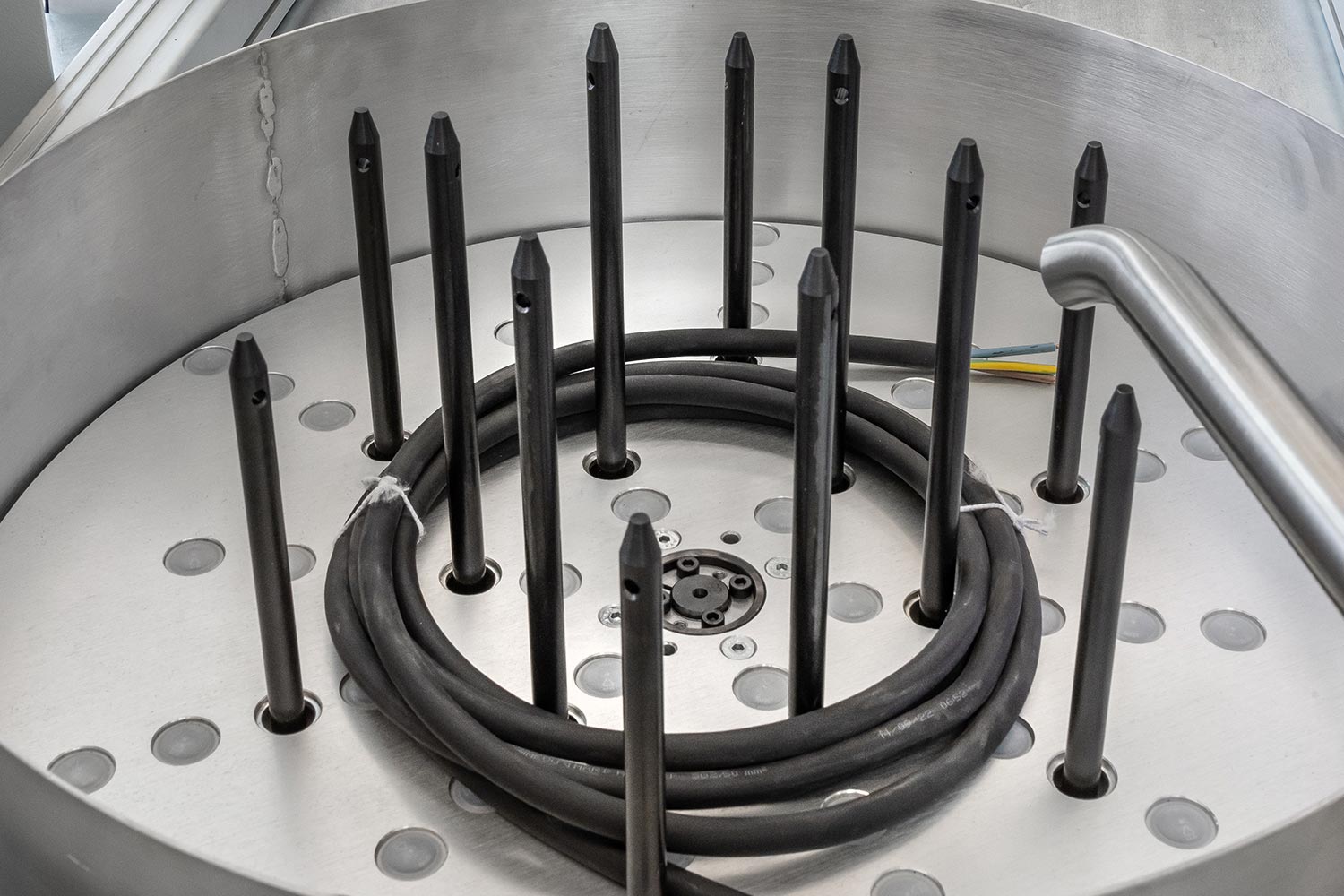

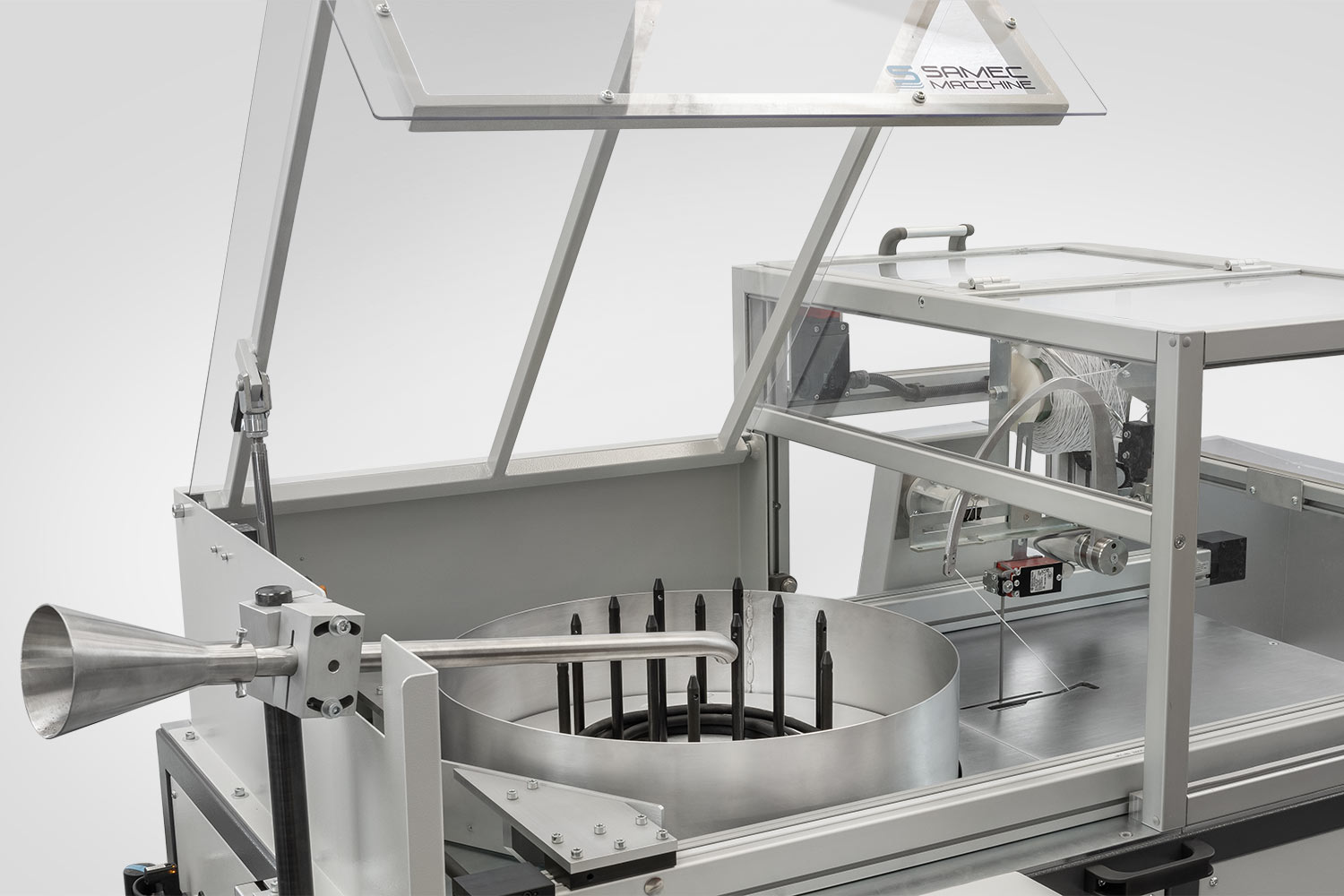

The machine is provided with a rotating platform with pins which are raised during the coiling process and protected by a plexiglass repair. At the coiling is complete, the repair automatically lift and the pins retract into the platform to facilitate the coil removal.

To start the next cycle, the operator simply closes the repair and presses a foot pedal.

A careful electronic control of the motor allows to automatically adjust the coiling speed to match the speed of the cut/strip machines, resulting in perfect coils.

The coiler is supplied with a connector to link to other SAMEC machines.
